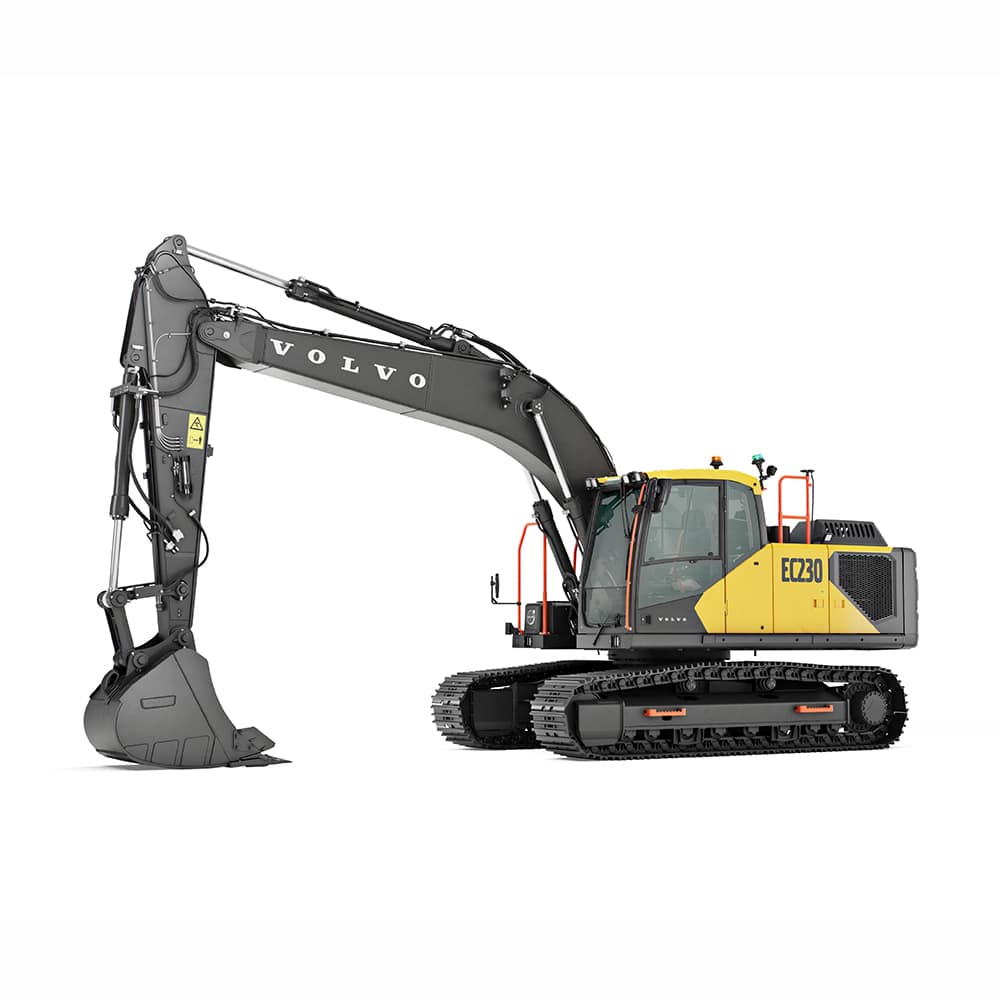

Volvo EC230F
| Engine | Volvo D6E |
| Rated output at | 1,350 rpm |
| Net Power (ISO 9249, SAE J1349) | 129 kW |
| Max. torque at 1 350 rpm | 730 Nm |
| Breakout Force (ISO 6015) | 125 kN (Normal) / 132 kN (Boost) |
| Max Dig Depth | 6,730 mm |
| Max Reach at Ground Level | 9,930 mm |
| Bucket Capacity | 0.46 – 1.44 m³ |
| Operating Weight | 20,667 – 26,145 kg |
