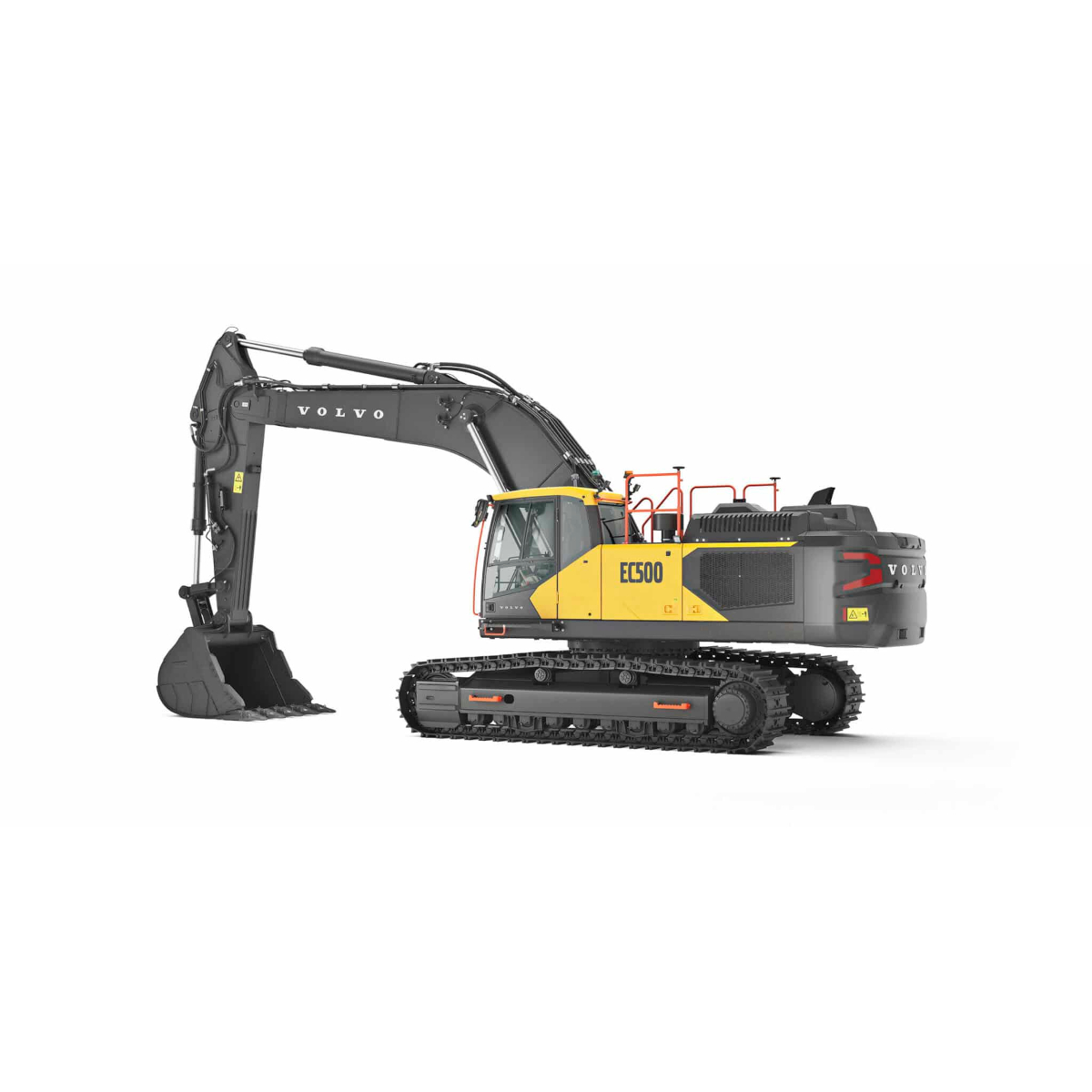

Volvo EC500F
| Engine | Volvo D13J |
| Rated output at | 1,300 rpm |
| Net Power (ISO 9249, SAE J1349) | 312 kW (423 hp) |
| Max. torque at 1 300 rpm | 2,070 Nm |
| Breakout Force (ISO 6015) | 230 kN (Normal) / 251 kN (Boost) |
| Boom Length | 7.7 m |
| Max Reach at Ground Level | 11,817 mm |
| Bucket Capacity | 1.14 – 3.31 m³ |
| Operating Weight | 48,130 – 52,800 kg |
